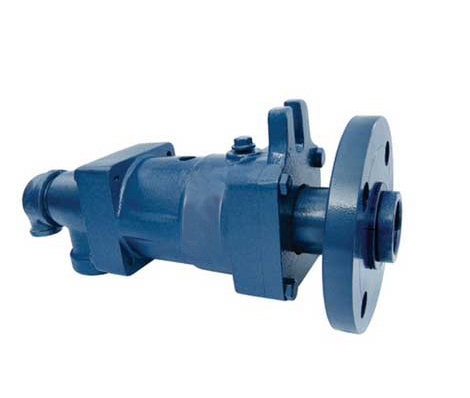

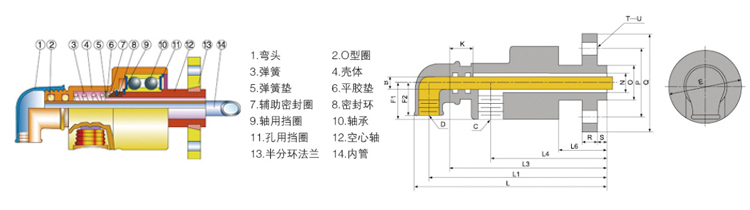

HS-XF型旋轉接頭 雙向流通內管旋轉式——半分環法蘭連接
|
規格
|
型號
|
B
|
C
|
D
|
E
|
F1
|
F2
|
K
|
L
|
L1
|
L3
|
L4
|
L6
|
N
|
O
|
P
|
Q
|
R
|
S
|
T
|
U
|
|
15
|
HS-XF15-6
|
10
|
Rc1/2
|
Rc1/2
|
55
|
28
|
25
|
15
|
147
|
135
|
125
|
90
|
30
|
12
|
26
|
65
|
95
|
14
|
8
|
4
|
14
|
|
20
|
HS-XF20-8
|
12
|
Rc3/4
|
Rc1/2
|
62
|
31
|
30
|
32
|
170
|
155
|
140
|
95
|
30
|
16
|
32
|
75
|
105
|
14
|
8
|
4
|
14
|
|
25
|
HS-XF25-10
|
16
|
Rc3/4
|
Rc1/2
|
74
|
37
|
33
|
26
|
175
|
160
|
145
|
103
|
33 |
20
|
36
|
85
|
115
|
16
|
10
|
4
|
14
|
|
32
|
HS-XF32-15
|
20
|
Rc1-1/4
|
Rc1/2
|
90
|
45
|
38
|
32
|
211
|
196
|
182
|
128
|
42
|
30
|
46
|
100
|
140
|
18
|
12
|
4
|
18
|
|
40
|
HS-XF40-20
|
25
|
Rc1-1/2
|
Rc3/4
|
95
|
48
|
43
|
36
|
232
|
210
|
185
|
130
|
40
|
35
|
50
|
110
|
150
|
18
|
12
|
4
|
18
|
|
50
|
HS-XF50-25
|
31
|
Rc1-1/2
|
Rc1
|
122
|
60
|
51
|
46
|
300
|
278
|
255
|
182
|
60
|
48
|
60
|
125
|
165
|
20
|
15
|
4
|
18
|
|
65
|
HS-XF65-32
|
40
|
Rc2
|
Rc11/4
|
156
|
78
|
62
|
50
|
350
|
325
|
295
|
211
|
68
|
62
|
75
|
145
|
182
|
20
|
18
|
4
|
18
|
|
80
|
HS-XF80-40
|
46
|
Rc2
|
Rc2
|
160
|
80
|
70
|
66
|
383
|
353
|
286
|
231
|
90
|
75
|
90
|
160
|
200
|
20
|
12
|
8
|
18
|
