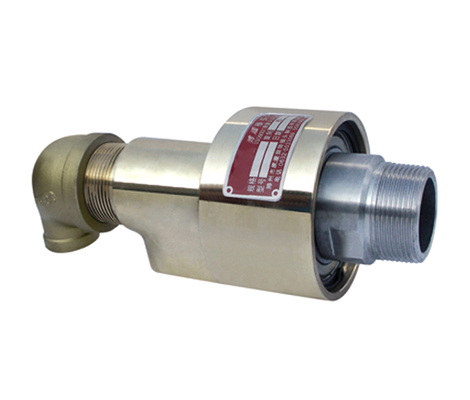

HS-G型旋轉(zhuǎn)接頭 雙向流通內(nèi)管固定式——螺紋連接
|

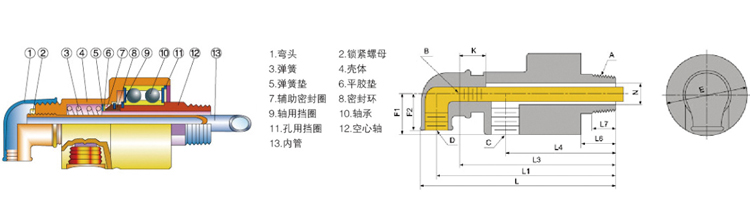

規(guī)格
|
型號
|
A
|
B
|
C
|
D
|
E
|
F1
|
F2
|
K
|
L
|
L1
|
L3
|
L4
|
L6
|
L7
|
N
|
|
15
|
HS-G15-6
|
R1/2
|
G1/8
|
Rc1/2
|
Rc3/8
|
55
|
28
|
25
|
15
|
147
|
135
|
125
|
90
|
30
|
17
|
12
|
|
20
|
HS-G20-8
|
R3/4
|
G1/4
|
Rc3/4
|
Rc1/2
|
62
|
31
|
30
|
32
|
170
|
155
|
140
|
95
|
30
|
20
|
16
|
|
25
|
HS-G25-10
|
R1
|
G3/8
|
Rc3/4
|
Rc1/2
|
74
|
37
|
33
|
26
|
175
|
160
|
145
|
103
|
33
|
20
|
20
|
|
32
|
HS-G32-15
|
R1-1/4
|
G1/2
|
Rc1-1/4
|
Rc1/2
|
90
|
45
|
38
|
32
|
211
|
196
|
182
|
148
|
42
|
25
|
30
|
|
40
|
HS-G40-20
|
R1-1/2
|
G3/4
|
Rc1-1/2
|
Rc3/4
|
95
|
48
|
43
|
36
|
232
|
210
|
185
|
130
|
40
|
25
|
36
|
|
50
|
HS-G50-25
|
R2
|
G1
|
Rc1-1/2
|
Rc1
|
122
|
60
|
51
|
46
|
300
|
278
|
255
|
180
|
60
|
35
|
48
|
|
65
|
HS-G65-32
|
R2-1/2
|
G1-1/4
|
Rc2
|
Rc1-1/4/
|
156
|
78
|
62
|
50
|
350
|
325
|
295
|
211
|
68
|
40
|
62
|
|
80
|
HS-G80-40
|
R3
|
G1-1/2
|
Rc2-1/2
|
Rc1-1/2
|
160
|
80
|
70
|
50
|
383
|
353
|
286
|
231
|
90
|
35
|
75
|
